Spline bushing group 3

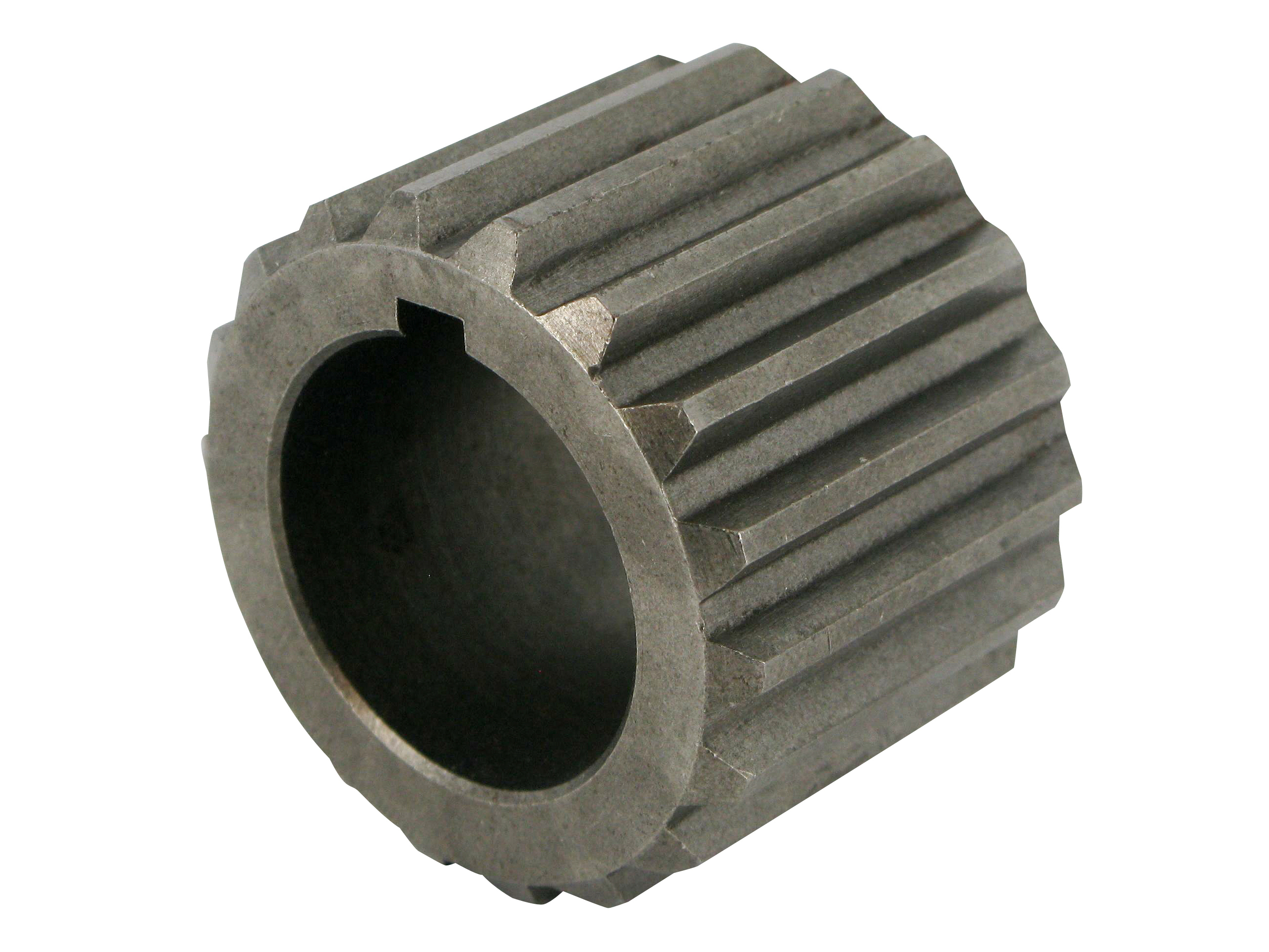

Splined bushing 18T gr.3(1:8)

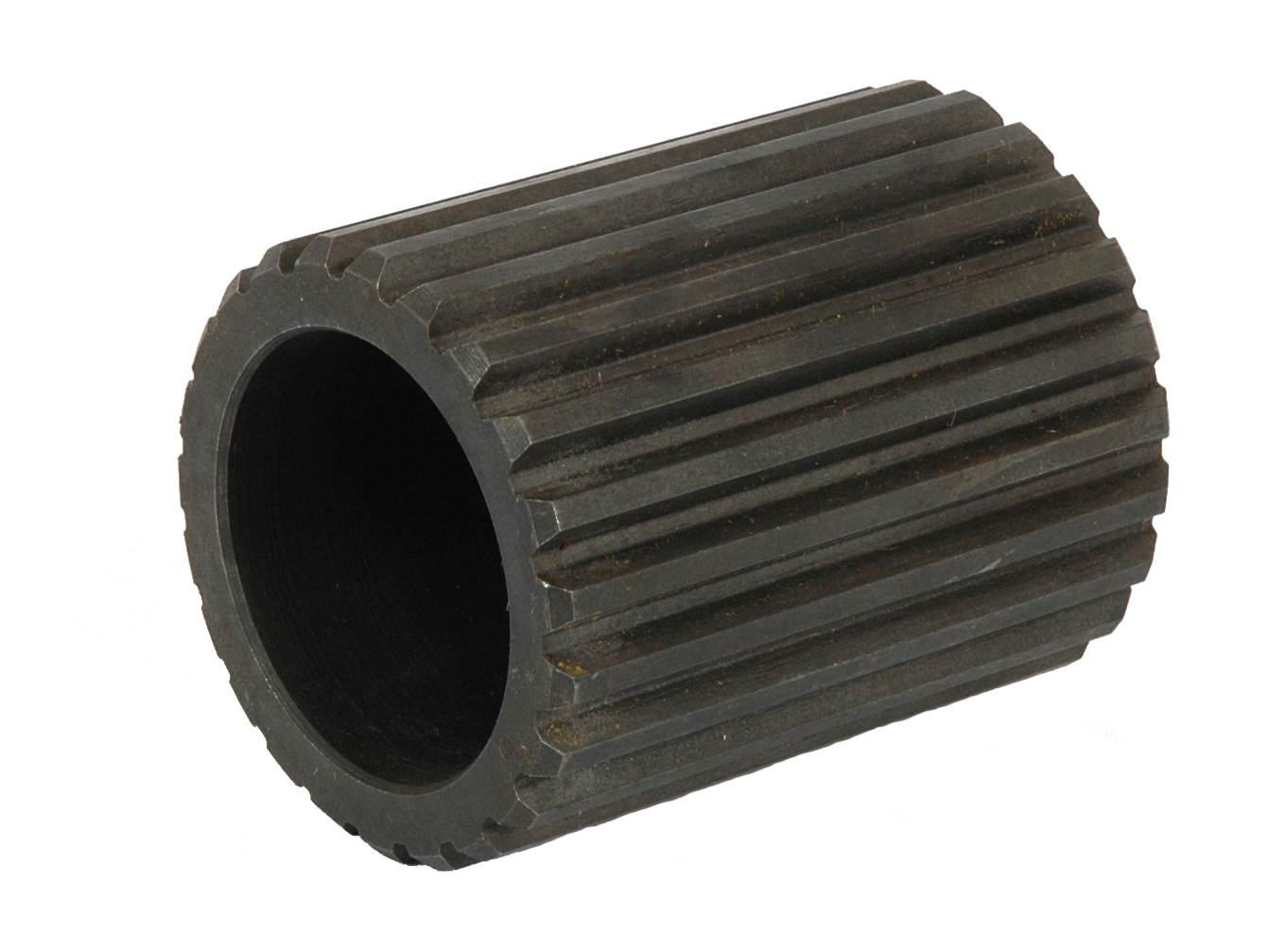

Spline bushing 20T gr.3 (1:8)

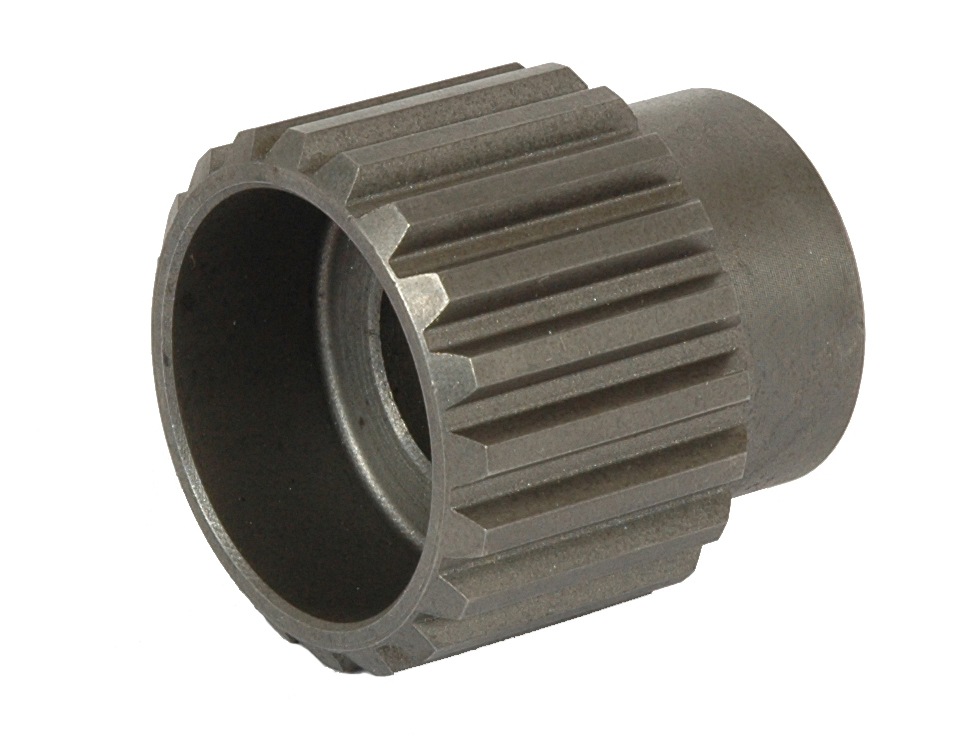

Spline bushing 23T GR3 L60

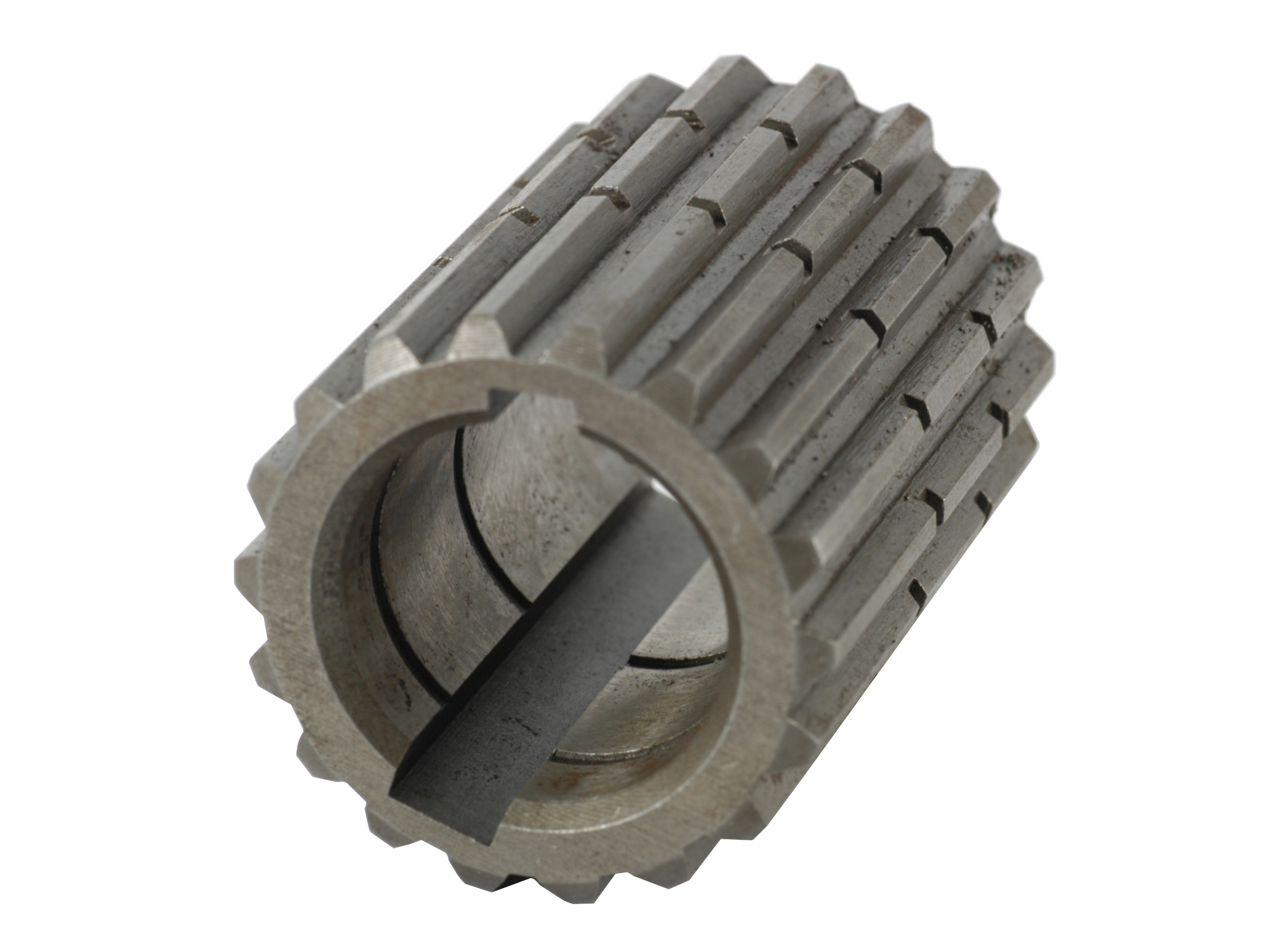

Splline bushing, IM1-SAE-22,22

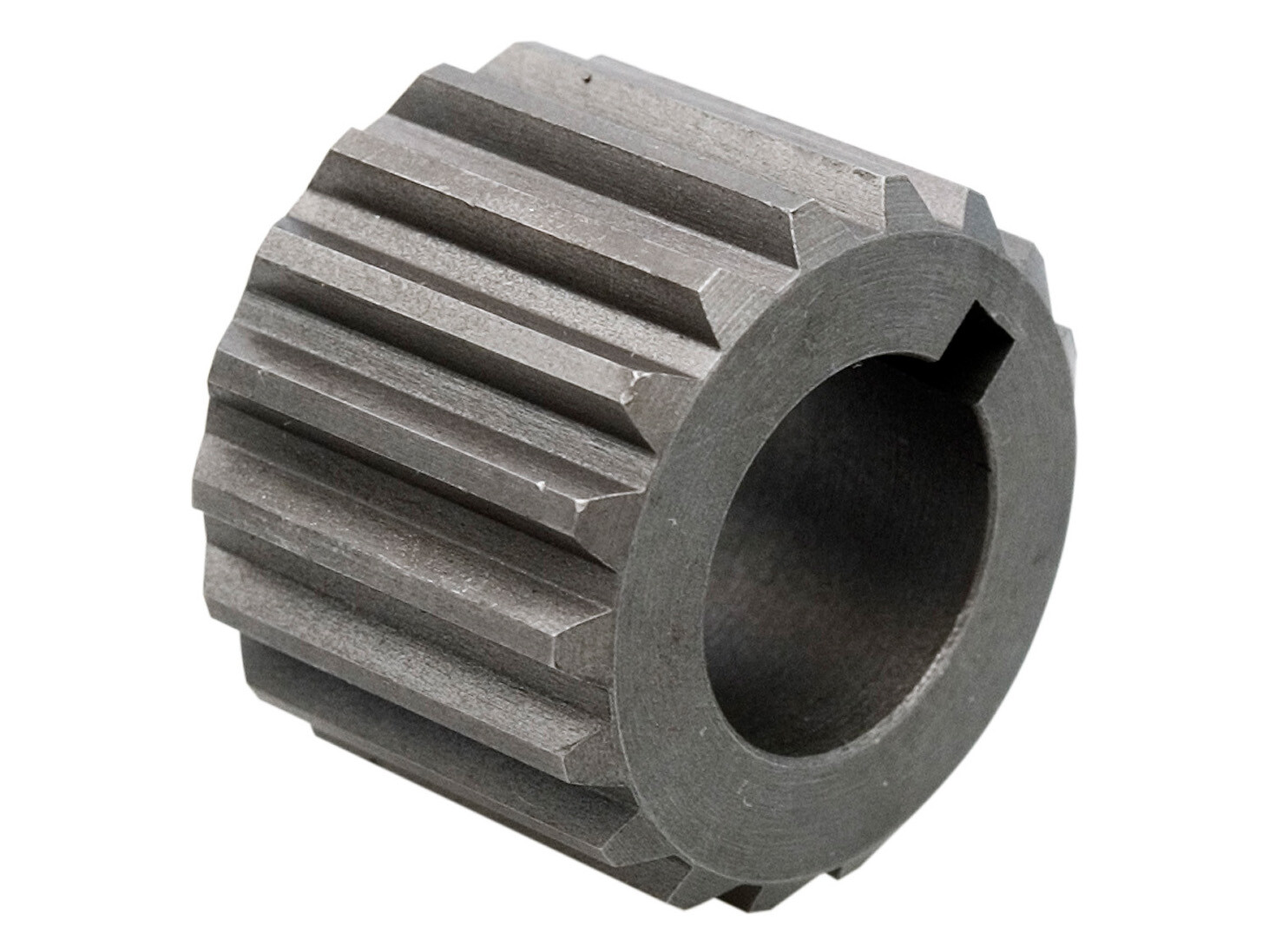

Splined bushing 18T gr.3(1:8)

Splline bushing, IM1-SAE-22,22

SELECT VARIANT

Partnumber	Description	Pump group	Number of outer grooves	Length
10014	Splined bushing 18T gr.3(1:8)	3	18	34.5 mm
10016L40	Spline bushing 20T gr.3 (1:8)	3	20	39.5 mm
10019L60	Spline bushing 23T GR3 L60	3
15002	Splline bushing, IM1-SAE-22,22	3	18	49 mm
IBF3	Splined bushing 18T gr.3(1:8)	3	18	34.5 mm
IBF3/B-B1	Splline bushing, IM1-SAE-22,22	3	18	49 mm

Material

Steel

Pump group

Shaft cone

1:8
