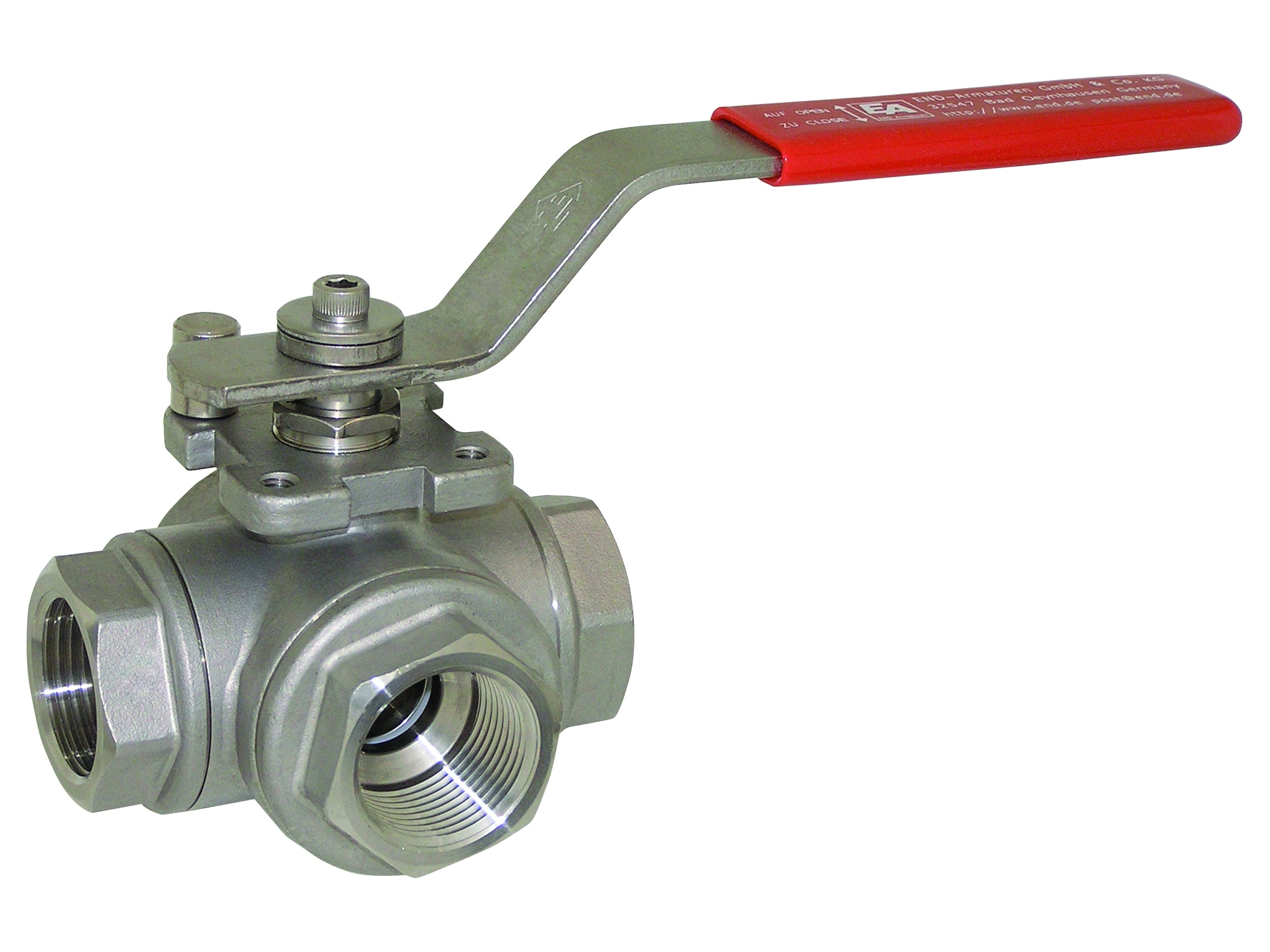

Ball valve 3 way - BSP, T-bore, stainless 1.4408 - GD3115 / S361-SY / H3K60

SELECT VARIANT
Partnumber Description Thread Hole
GD311521 1/4" PN63 3-way ball valve T-bore AISI316/PTFE G 1/4 BSP 9.5 mm
GD311522 3/8" PN63 3-way ball valve T-bore AISI316/PTFE G 3/8 BSP 11 mm
GD311523 1/2" PN63 3-way ball valve T-bore AISI316/PTFE G 1/2 BSP 12 mm
GD311524 3/4" PN63 3-way ball valve T-bore AISI316/PTFE G 3/4 BSP 15 mm
GD311525 1" PN63 3-way ball valve T-bore AISI316/PTFE G 1 BSP 20 mm
GD311526 1.1/4" PN63 3-way ball valve T-bore AISI316/PTFE G 1.1/4 BSP 25 mm
GD311527 1.1/2" PN63 3-way ball valve T-bore AISI316/PTFE G 1.1/2 BSP 32 mm
GD311528 2" PN63 3-way ball valve T-bore AISI316/PTFE G 2 BSP 40 mm
Bore
T

Brand Name
Hydraspecma

Material
Stainless steel

Material quality
1.4408 / AISI316L

Number of ways/positions
3/3

Pressure max.
63

Sealing material
NBR, PTFE (TeflonĀ®)

Standard DIN
DIN 2999

Temperature max.
+180

Temperature min.
-25
