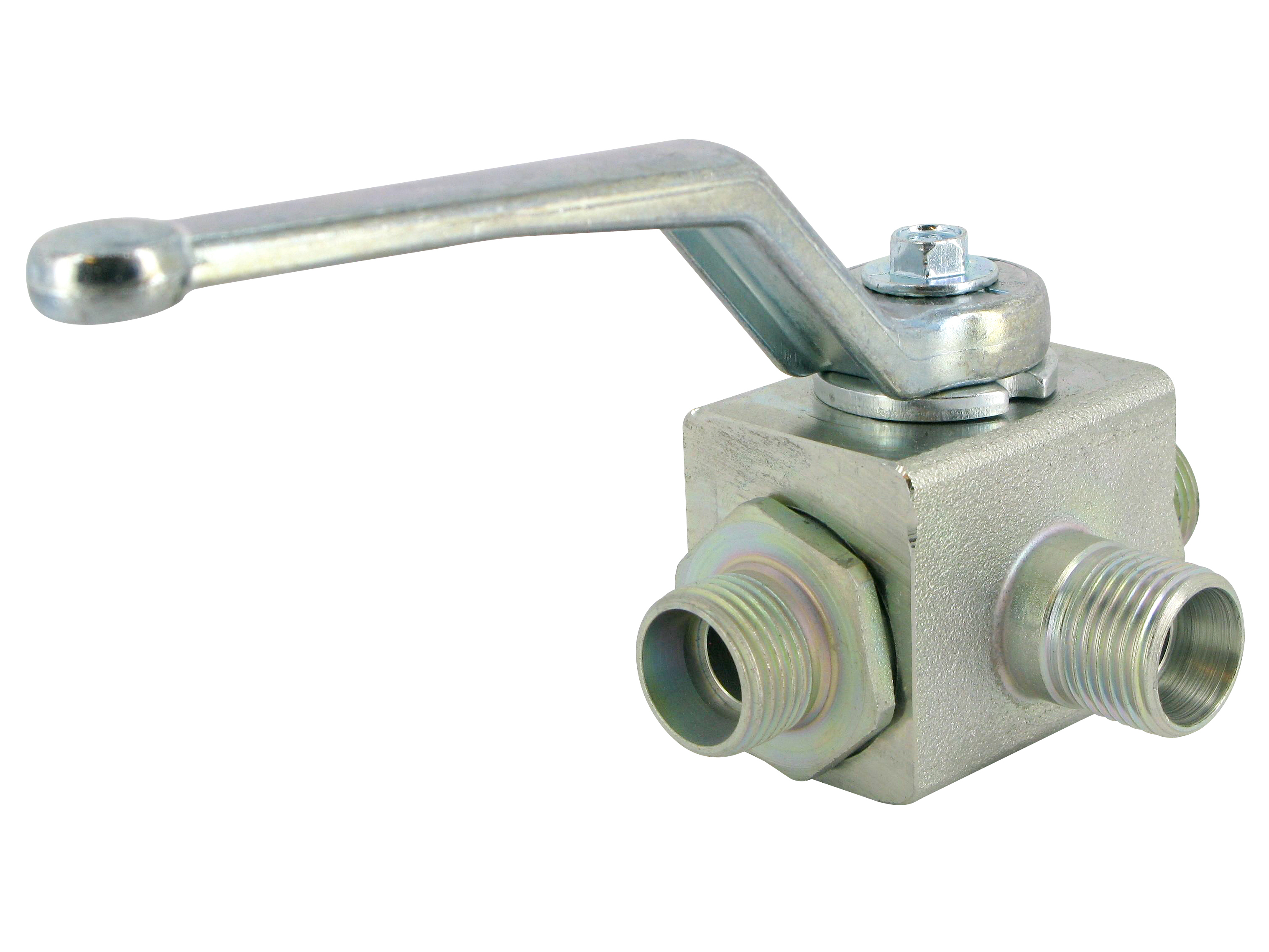

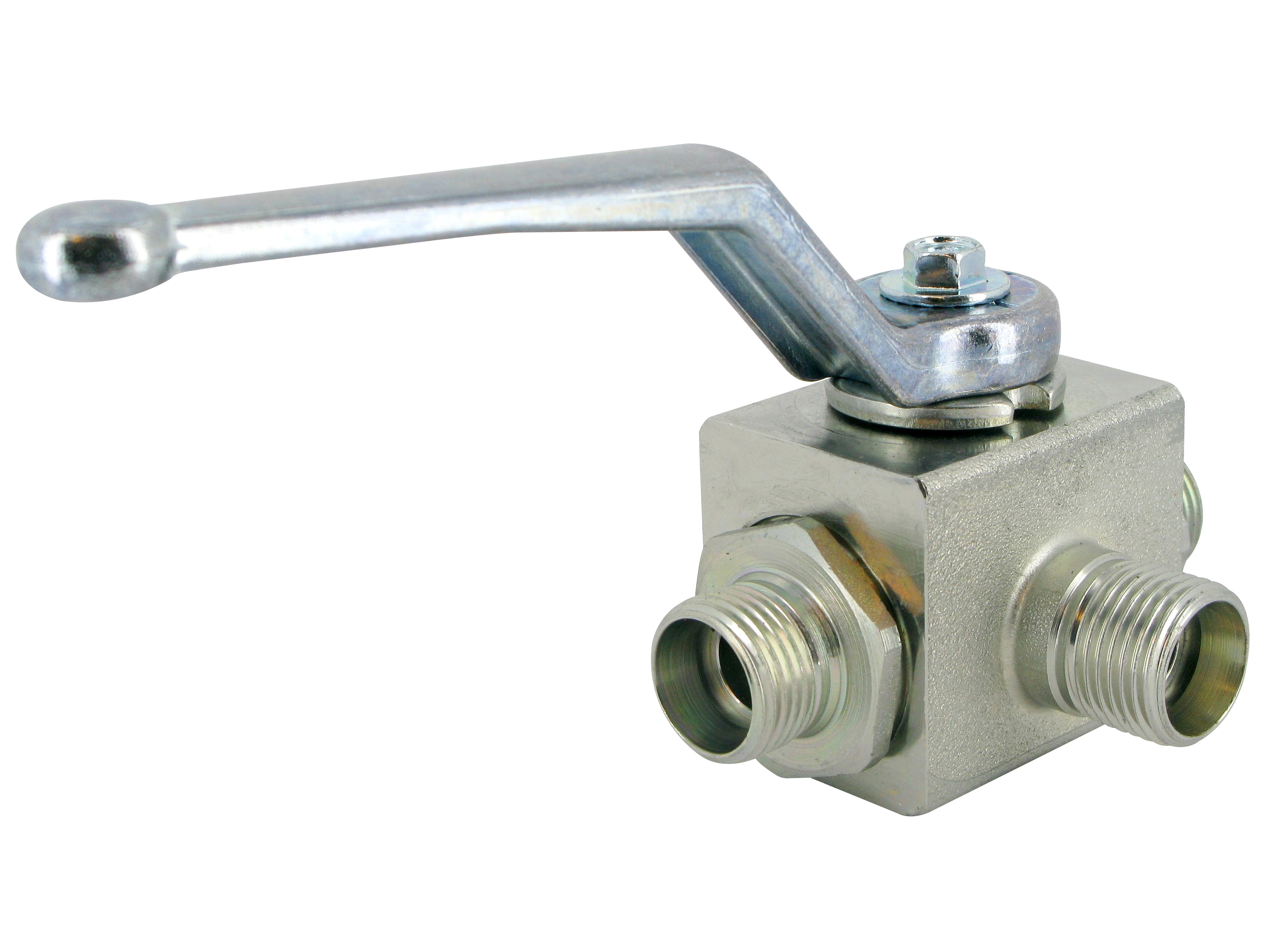

Ball valve 3 way - Standard series, MM, DIN2353, L-bore, steel, without mounting holes - BK3

Seal kit for ball valve BK3 DN13 1123

Partnumber: BK3ALW13

Locking plate DN04-13 ball valve

Partnumber: LSW09

Bended grip DN04-13

Partnumber: SWF09-106

Top screw DN04-13 ball valve M4x08

Partnumber: TSW09

Bended grip DN04-06

Partnumber: SWF12-165

Seal kit for ball valve BK3 DN10 1123

Partnumber: BK3ALW10

SELECT VARIANT

Partnumber	Description	Pressure max.	Diameter inner
BK3-12L	3-way valve-male -M18x1,5/L BK3 12l 10 1123 1 l	400 bar	10 mm
BK3-12LLA	3-way valve-male -M18x1,5/L BK3 12l 10 1123 1 la galvaniz	400 bar	10 mm
BK3-12LPA	3-way valve-male -M18x1,5/L BK3 12l 10 1123 1 PA	400 bar	10 mm
BK3-15L	3-way valve-male -M22x1,5/L BK3 15L 13 1123 1 l galvaniz	350 bar	13 mm
BK3-15LLA	3-way valve-male -M22x1,5/L BK3 15L 13 1123 1 la	350 bar	13 mm
BK3-15LPA	3-way valve-male -M22x1,5/L BK3 15L 13 1123 1 PA	350 bar	13 mm
BK3-18LLA	3-way valve-male -M26x1,5/L BK3 18L 13 1123 1 la	315 bar	9 mm
MBKL3-12L	3-way ball-valve male M18x1.5 12L - L-bore	500 bar

Number of ways/positions

3/2

Series

Temperature min.

-20
