Reduction gears for OMP/OMR Borelli

Reduction gears for OMP/OMR Borelli

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Gear ratio Torque input Torque output max. Power max.
95001-3 Borelli gear ø25 3:1 8.8 daNm 17.6 Nm 10 kW
96001-2 Borelli gear ø25 2:1 24.2 daNm 48.5 Nm 20 kW
96001-3 Borelli gear OMP/OMR ø25 3:1 3:1 19 daNm 57 Nm 20 kW
96001-3.5 Borelli gear ø25 3,5:1 15.1 daNm 53 Nm 20 kW

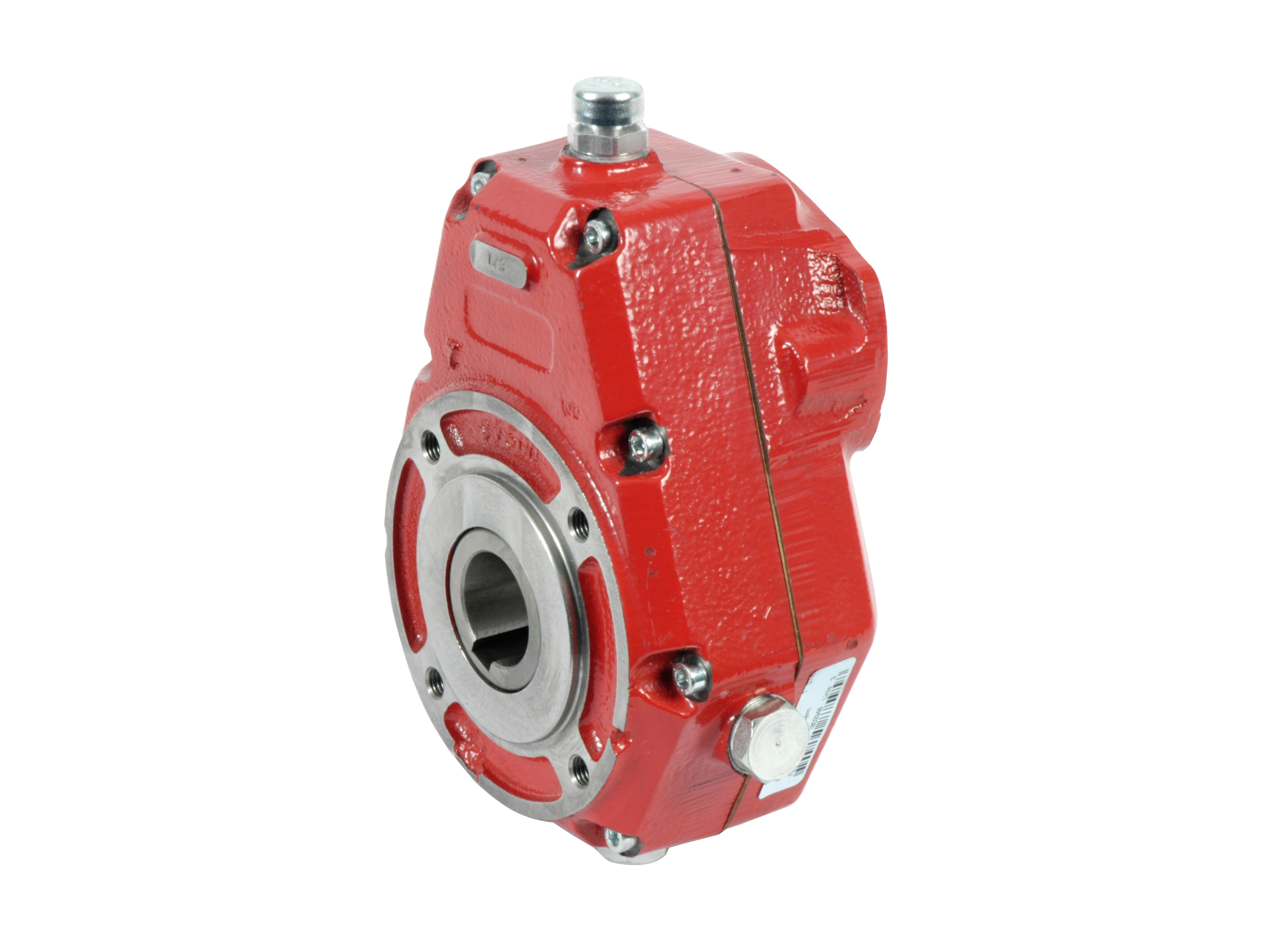

97501-3 Borelli gear ø25 - cast Iron 3:1 8 daNm 24 Nm 18 kW
Brand Name
Oleodinamica Borelli
Lock
No
Oil viscocity recommended
90
Shaft input
ø25 mm
Shaft output
ø35 mm
Shaft type
Cylindrical
