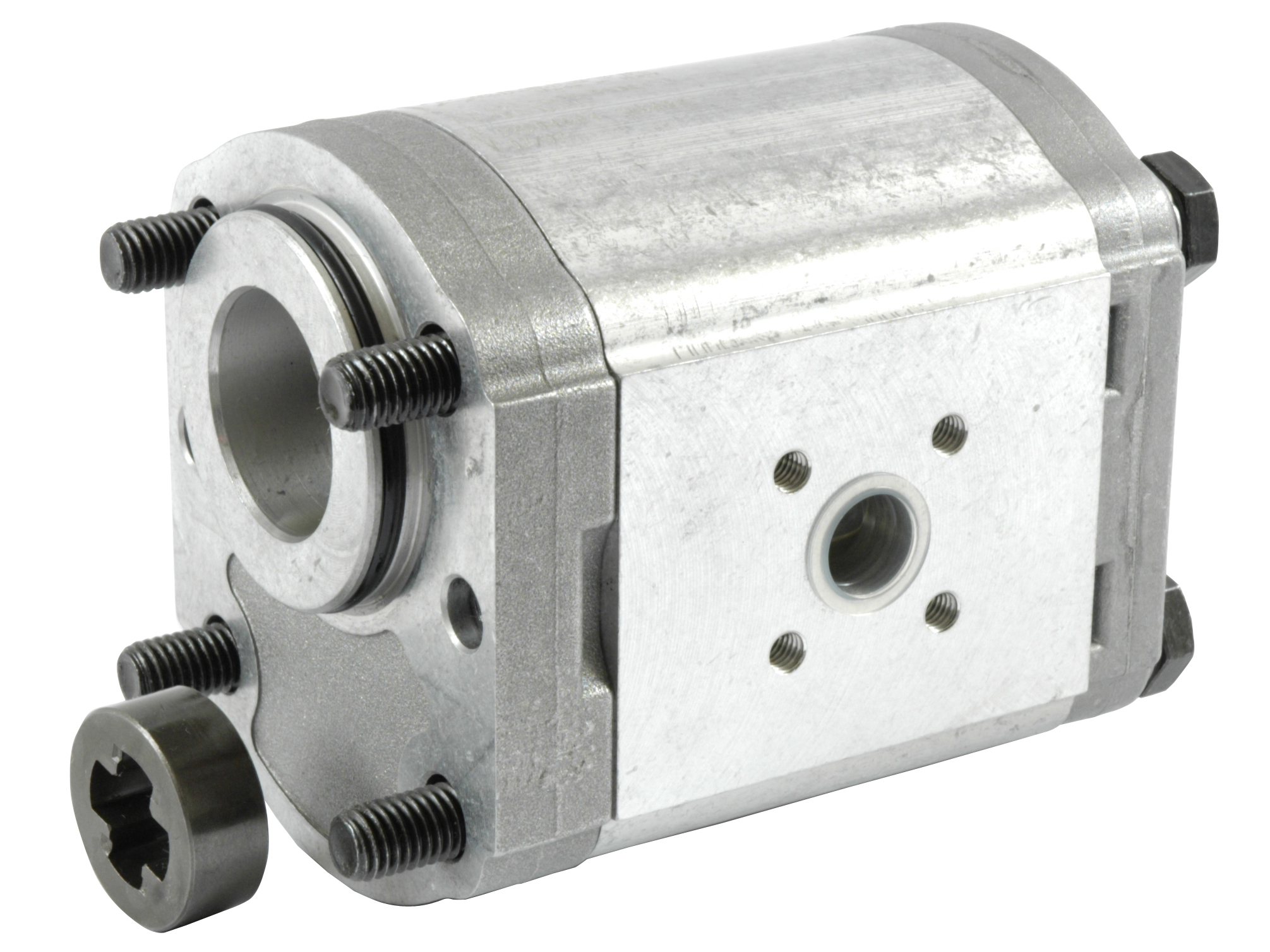

Gear pump gr.2 - Casappa, German std., Tang shaft

Gear pump gr.2 - Casappa, German std., Tang shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
02004676 PLP20.8D0-95B6-LBE/BC-N-EL Polaris pump, Casappa 8.26 cm3 250 bar 3500 rpm Right (CW)
02004683 PLP20.16S0-95B6-LBE/BC-N-EL Polaris pump, Casappa 16.85 cm3 250 bar 3000 rpm Left (CCW)
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Mounting flange
GER50-4
Number of mounting holes
4
Oil viscocity recommended
12 - 100
Port inlet
GE40
Port outlet
GE35
Pressure continous max.
250
Pressure intermittent max.
280
Pump group
2
Recess
50,0
Shaft type
Tang
Torque input
7
