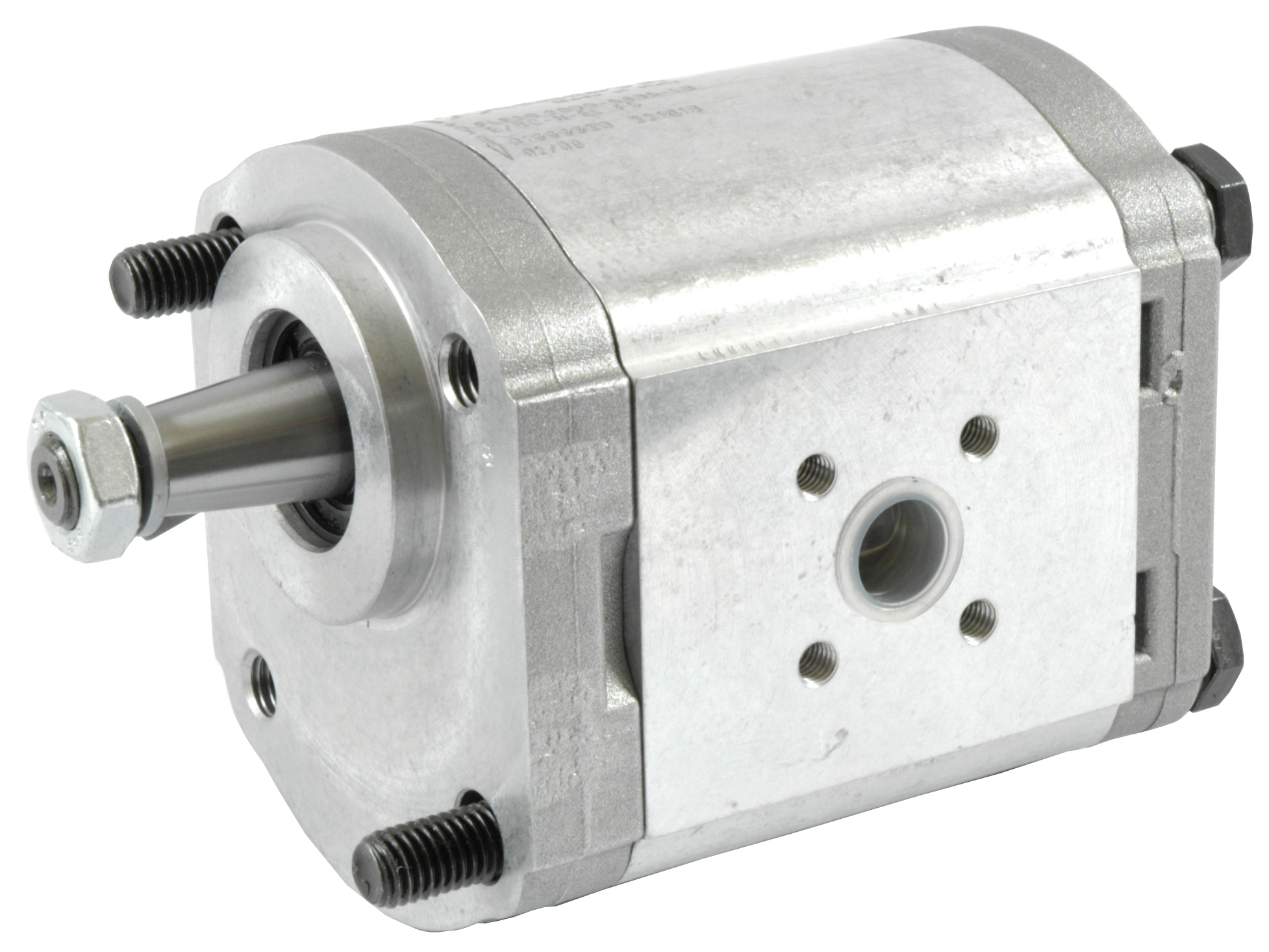

Gear pump gr.2 - Casappa, German std., taper shaft 1:5, left

Gear pump gr.2 - Casappa, German std., taper shaft 1:5, left

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
01999922 PLP20.8D0-54B5-LBE/BC-N-EL-FS Polaris pump, Casappa 8.26 cm3 250 bar 3500 rpm Right (CW)
01999932 PLP20.25D0-54B5-LBE/BC-N-EL-FS Polaris pump, Casappa 26.42 cm3 170 bar 2500 rpm Right (CW)
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Mounting flange
GER50-2
Number of mounting holes
2
Oil viscocity recommended
12 - 100
Port inlet
GE40
Port outlet
GE35
Pump group
2
Recess
50,0
Rotation direction
Right (CW)
Shaft cone
1:5
Shaft keyway
3,0
Shaft type
Tapered
Torque input
4
