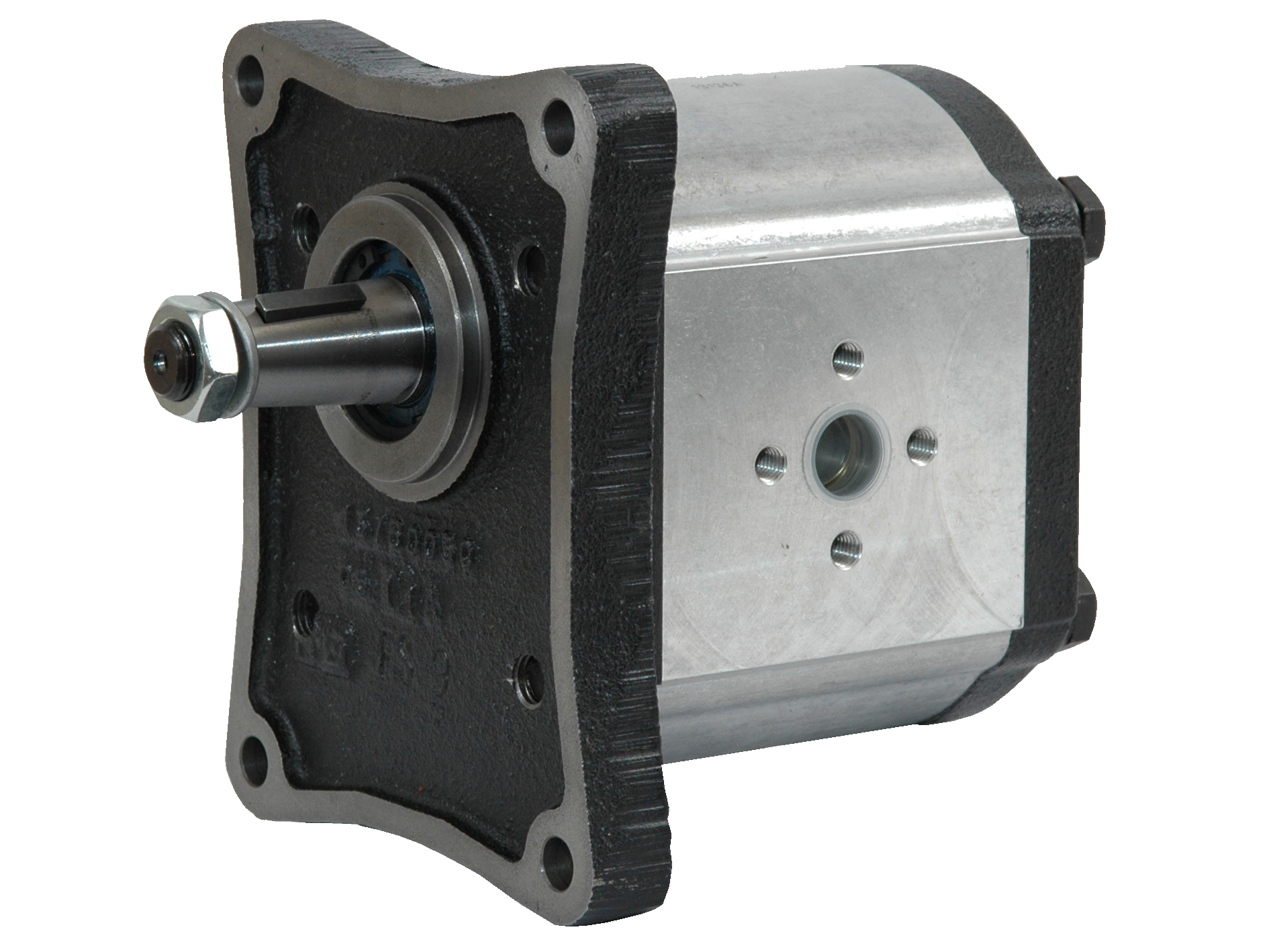

Gear pump gr.3.5 - Casappa, EU flange, shaft 1:8

Gear pump gr.3.5 - Casappa, EU flange, shaft 1:8

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
35.51D Gear pump Casappa Grp3.5 51.83ccm 1:8 shaft - Right 51.83 cm3 210 bar 2500 rpm Right (CW)
35.61D Gear pump Casappa Grp3.5 61.26ccm 1:8 shaft - Right 61.26 cm3 190 bar 2500 rpm Right (CW)
35.61S Gear pump Casappa Grp3.5 61.26ccm 1:8 shaft - Left 61.26 cm3 190 bar 2500 rpm Left (CCW)
35.73D Gear pump Casappa Grp3.5 73.82ccm 1:8 shaft - Right 73.82 cm3 170 bar 2500 rpm Right (CW)
35.82D Gear pump Casappa Grp3.5 81.68ccm 1:8 shaft - Right 81.68 cm3 160 bar 2200 rpm Right (CW)
35.82S Gear pump Casappa Grp3.5 81.68ccm 1:8 shaft - Left 81.68 cm3 160 bar 2200 rpm Left (CCW)
35.90D Gear pump Casappa Grp3.5 91.10ccm 1:8 shaft - Right 91.1 cm3 150 bar 2200 rpm Right (CW)
35.90S Gear pump Casappa Grp3.5 91.10ccm 1:8 shaft - Left 91.1 cm3 150 bar 2200 rpm Left (CCW)
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Mounting flange
EU60 - 149x114
Number of mounting holes
4
Oil viscocity recommended
12 - 100
Pump group
3.5
Recess
60,0
Shaft cone
1:8
Shaft keyway
4,8
Shaft type
Tapered
Torque input
35
