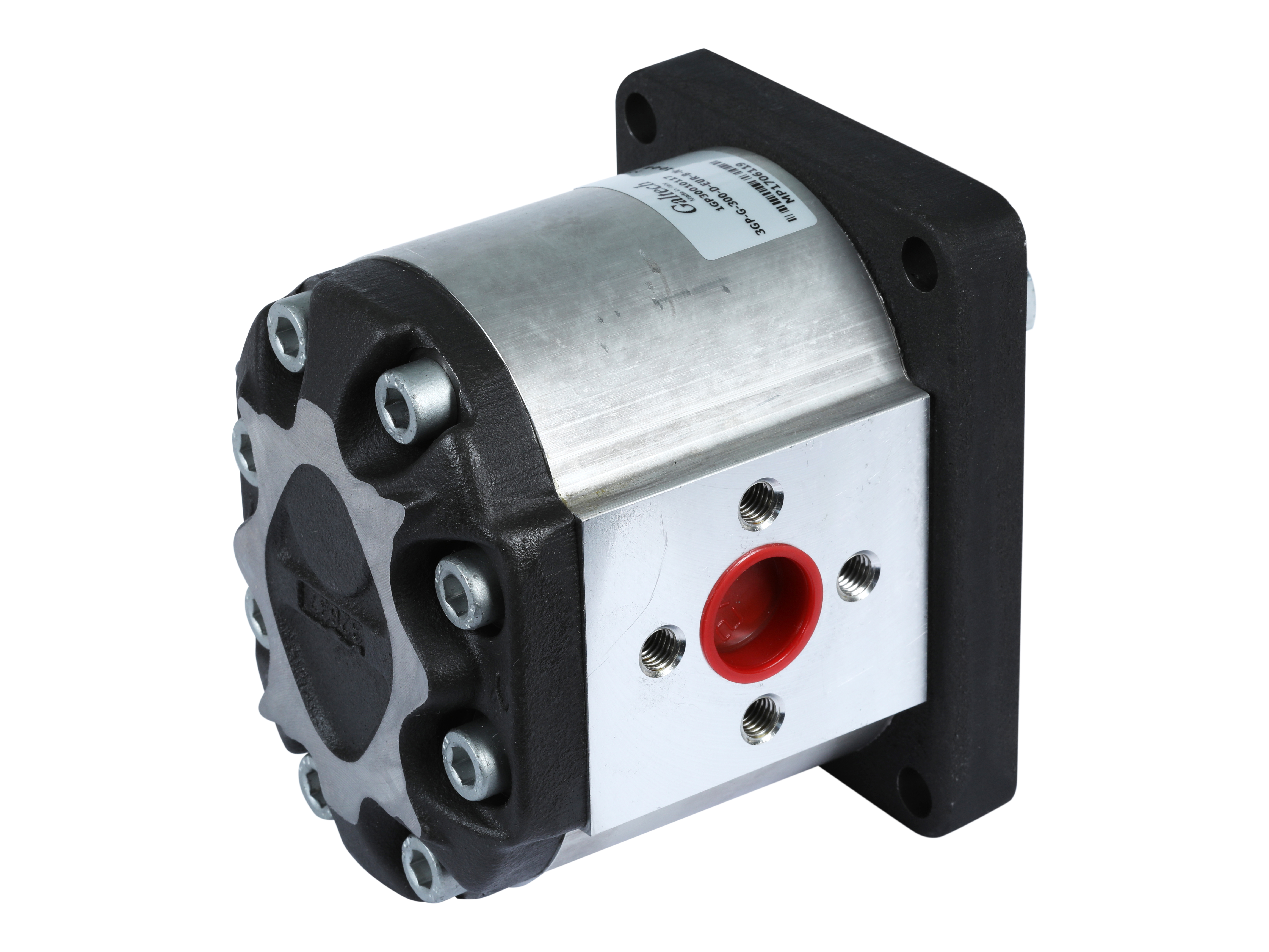

Gear pump gr.3 - Galtech 3SPA

Gear pump gr.3 - Galtech 3SPA

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
1GP30010001 3SPA19-D-10-N Hydraulic pump, Galtech alu 30.2 cm3 240 bar 3500 rpm Right (CW)
3SPA22-S 3SPA22-S-10-N Hydraulic pump, Galtech alu 22.3 cm3 240 bar 3500 rpm Left (CCW)
Brand Name
Walvoil
Mounting flange
EU51 - 128x98
Number of mounting holes
4
Oil viscocity recommended
12 - 100
Port inlet
EU51
Port outlet
EU40
Pressure continous max.
240
Pump group
3
Recess
51,0
Rotational speed max.
3500
Shaft cone
1:8
Shaft keyway
4,0
Shaft type
Tapered
Torque input
24
