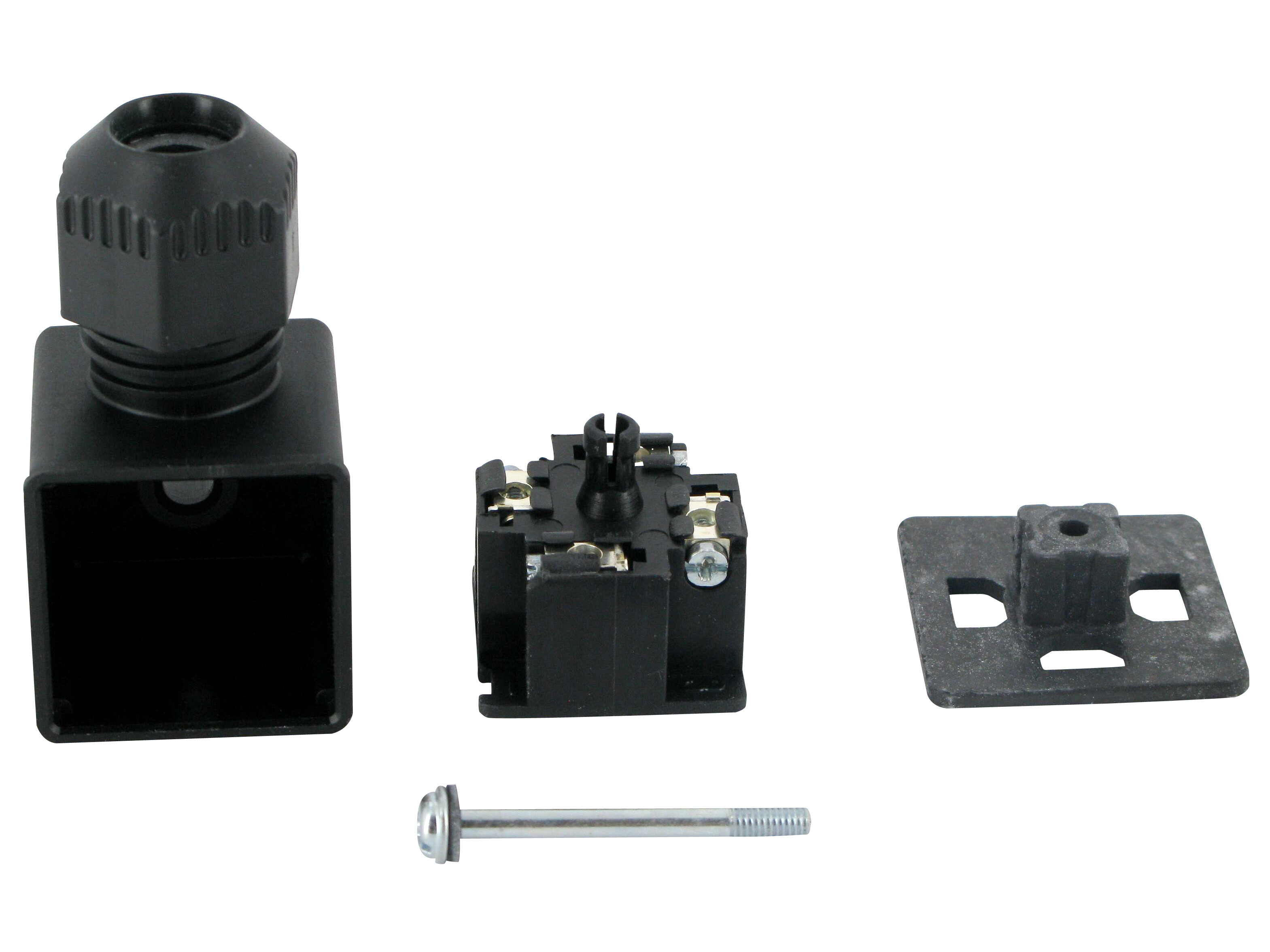

DIN-connector with rectifier 4
Din-connector according to EN 175301-803 (DIN 43650). Comes with cable connection, holding screw and gasket.
Cable connection: Screw terminals Cross-sectional area : 0,5 - 1,5 mm2
Partnumber:
KA132R23B9
Package size:
0 pcs
Min. order quantity is:
1 pcs
Color
Black
Comment
PG9
Current max.
4 A
Current type
AC
Diameter cable max.
8 mm
Diameter cable min.
6 mm
Number of LED's
0
Number of connectorpins
3
Overvoltage protection
No
Plug type
DIN 43650 Form A
Rectifier built-in
Yes
Sealing material
NBR
Standard DIN
DIN 43650
Standard EN
EN 175301-803
Standard ISO
ISO 4400
Voltage max.
230 V
Package size
0 pcs
Barcode
5704295943657
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
Intrastat code
84812010
Din-connector according to EN 175301-803 (DIN 43650). Comes with cable connection, holding screw and gasket.
Cable connection: Screw terminals Cross-sectional area : 0,5 - 1,5 mm2
