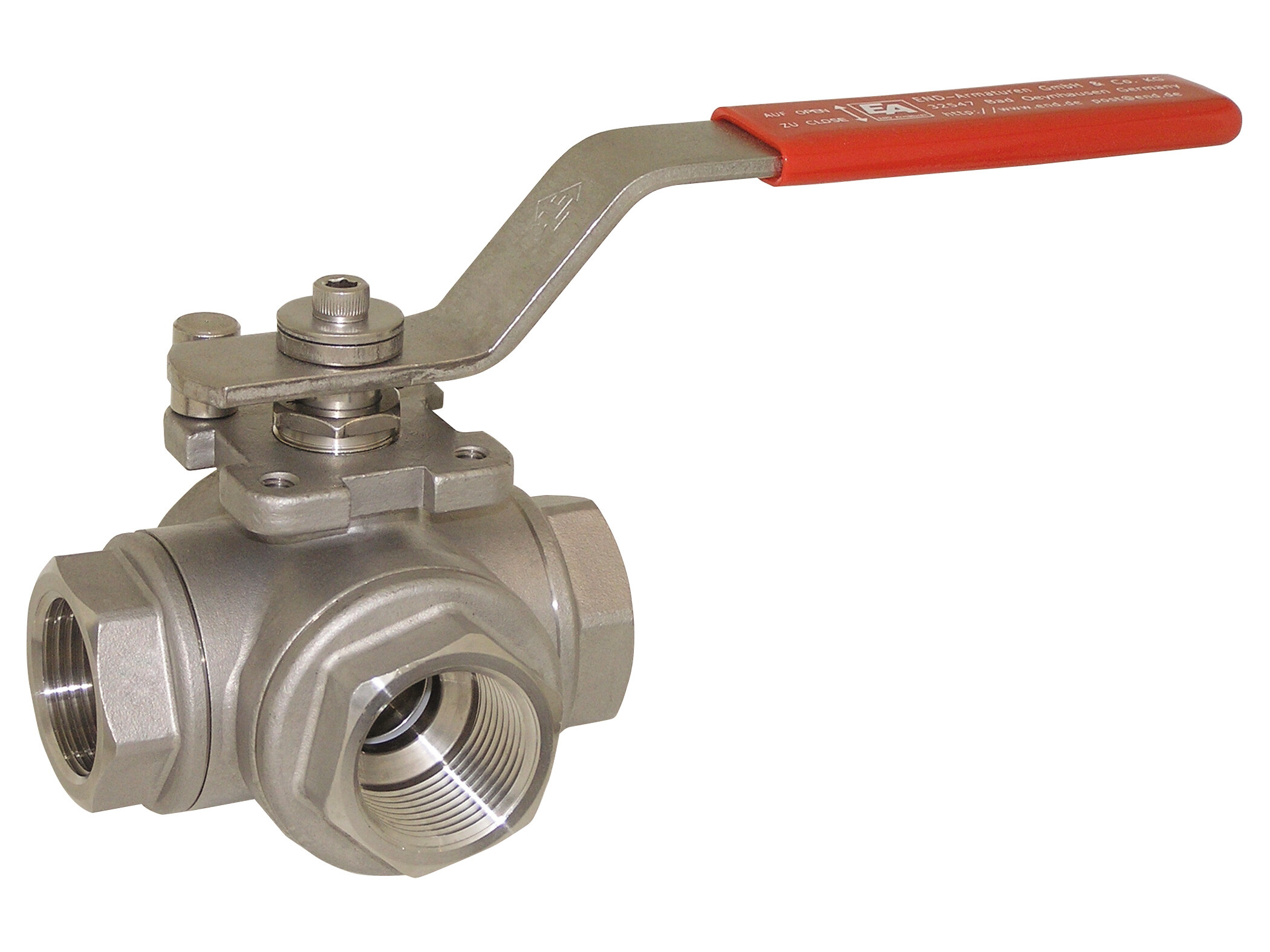

3/8" PN63 3-way ball valve L-bore AISI316/PTFE

3-way ball valves with L-bore, reduceret.

Materials:
Body: 1.4408
Ball: 1.4408
Seat: PTFE (Teflon)

Partnumber:

GD311422

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Bore

Brand Name

Hydraspecma

Build length

75 mm

Dimension H

66 mm

Dimension L

75 mm

Dimension L1

57.5 mm

Hole

11 mm

Material

Stainless steel

Material quality

1.4408 / AISI316L

Model code

GD311422

Number of ways/positions

3/3

Pressure max.

63 bar

Sealing material

NBR, PTFE (Teflon®)

Standard DIN

DIN 2999

Temperature max.

+180 °C

Temperature min.

-25 °C

Thread

G 3/8 BSP

Package size

0 pcs

Barcode

5704334472636

Gross weight

0,78 Kg

Net weight

0,78 Kg

Country of origin

DEU

Intrastat code

84812010

Product information
Measure sketch

3-way ball valves with L-bore, reduceret.

Materials:
Body: 1.4408
Ball: 1.4408
Seat: PTFE (Teflon)
