Sequence valve CP240-21-B-0-E-C-100

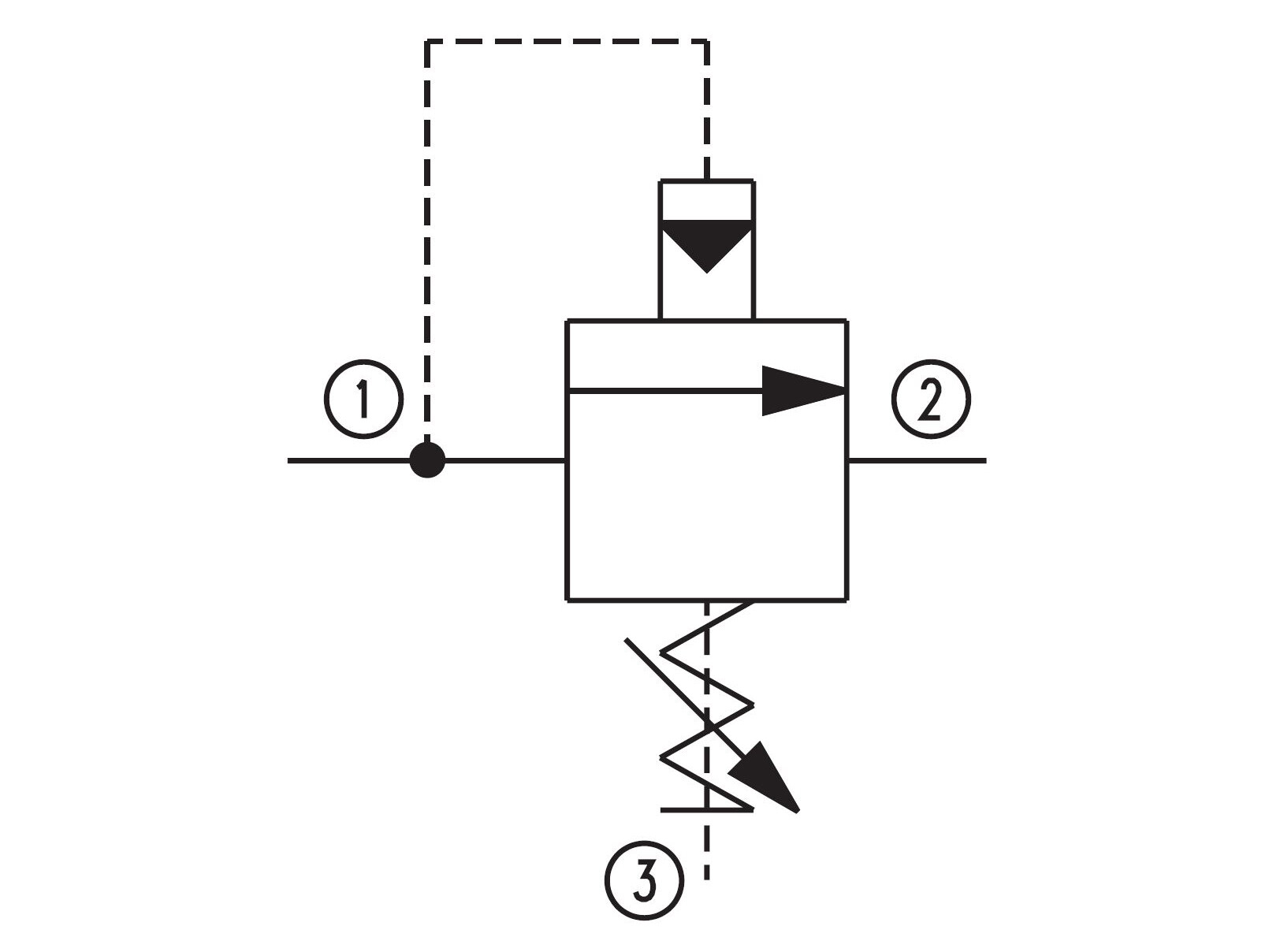

CP240-21, Sequence Valve, Pilot Operated, Spool Type, Internal Pilot, External Drain
This is a pilot operated, spool type sequence valve that opens from port 1 to port 2 when the setting is reached. This is ideal for sequencing a secondary operation while maintaining pressure in the primary operation, limiting pressure loss with constant or varying flows.
Partnumber:
83050424
Package size:
1 pcs
Min. order quantity is:
1 pcs
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
45 lpm
Key size
25.4 mm
Model code
CP240-21-B-0-E-C-100
Oil viscocity recommended
12 - 54 cSt
Pressure max.
350 bar
Pressure setting max.
207 bar
Pressure setting min.
28 bar
Sealing material
NBR
Torque tightening
64-73 Nm
Package size
1 pcs
Barcode
5704334825975
Gross weight
Kg
Net weight
Kg
Country of origin
usa
Intrastat code
84812010
CP240-21, Sequence Valve, Pilot Operated, Spool Type, Internal Pilot, External Drain
This is a pilot operated, spool type sequence valve that opens from port 1 to port 2 when the setting is reached. This is ideal for sequencing a secondary operation while maintaining pressure in the primary operation, limiting pressure loss with constant or varying flows.
