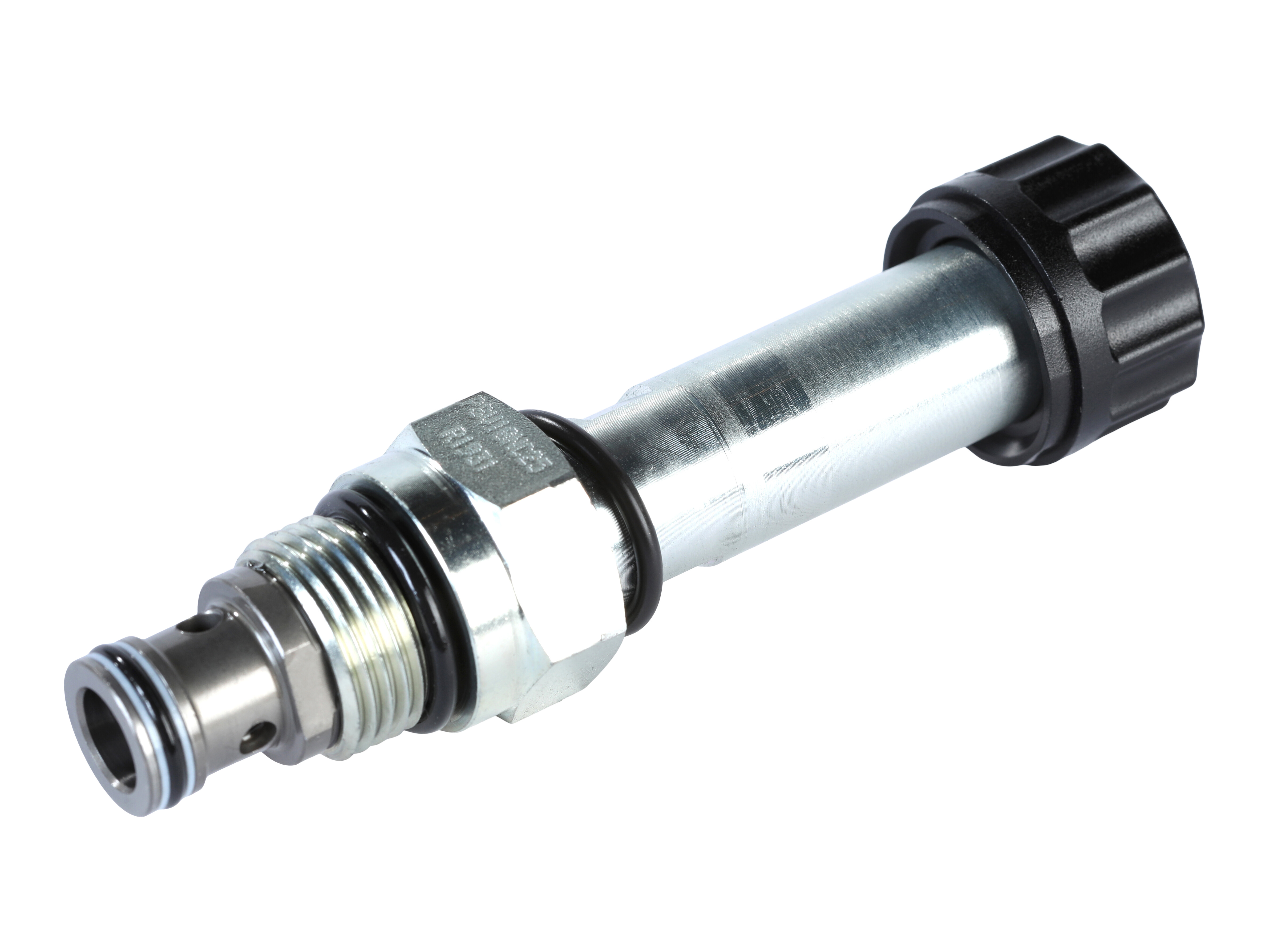

Plus+1 Prop.v. 2/2 NC 25l/m PSV10-NC-25-00-00-B-00
This is a 2-way, spool type, normally closed, non-compensated proportional flow control valve. In the de-energized condition, flow is blocked in both directions. Energizing the coil will proportionally open port 1 to 2. Used in conjunction with a compensator, the valve will act as the control orifice for a pressure compensated flow regulator.
Partnumber:
83019627
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Danfoss
Flow rate nominal LMin
25 lpm
Model code
PSV10-NC-25-00-00-B-00
Number of ways/positions
2/2
Torque tightening
45 - 50 Nm
Package size
0 pcs
Barcode
5704334629252
Gross weight
0,88 Kg
Net weight
0,88 Kg
Country of origin
Intrastat code
84812010
This is a 2-way, spool type, normally closed, non-compensated proportional flow control valve. In the de-energized condition, flow is blocked in both directions. Energizing the coil will proportionally open port 1 to 2. Used in conjunction with a compensator, the valve will act as the control orifice for a pressure compensated flow regulator.
