DFE052/3D18ES-W201 12VDC <CRZ>

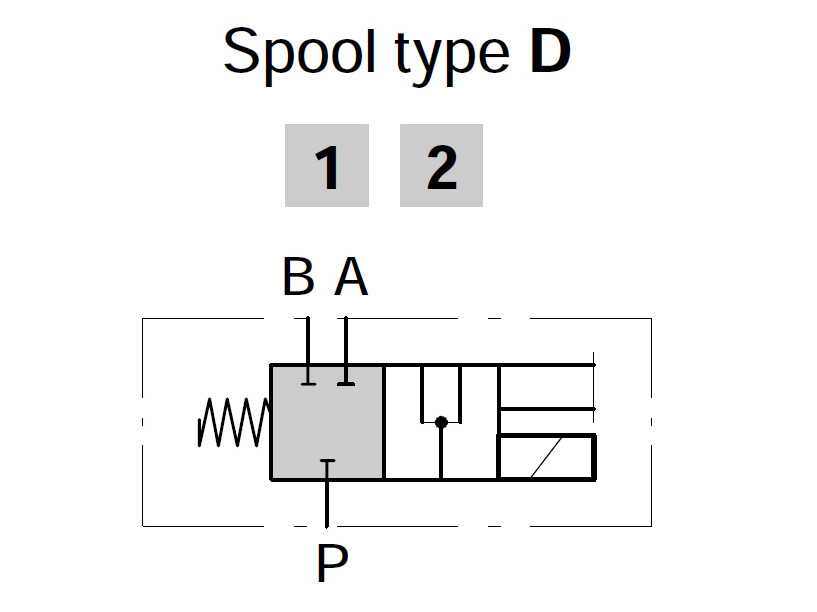

Electrically operated Walvoil selector valves "Spool type".
Modification to external drain requires mounting kit, type 5GIU*** (Must be ordered separately).
Partnumber:
12Z240029
Package size:
5 PCS
Min. order quantity is:
1 PCS
Contamination level max.
-/19/16 - ISO 4406
Corrosion resistance
168 hours salt spray UNI ISO 9227
Current type
DC
Drainport
G 1/4 BSP
Flow rate nominal LMin
60 lpm
Intrastat code
84812010
Model
DFE052
Number of ways/positions
3/2
Pressure with drain max.
315 bar
Pressure without drain max.
200 bar
Surface treatment
Zinc coating (CR III)
Temperature max.
+50 °C
Temperature min.
-20 °C
Thread
G 3/8 BSP
Voltage
12 V
Package size
5 PCS
Barcode
5704334790914
Gross weight
1,59 Kg
Net weight
1,59 Kg
Country of origin
ITA
Intrastat code
84812010
Electrically operated Walvoil selector valves "Spool type".
Modification to external drain requires mounting kit, type 5GIU*** (Must be ordered separately).
