Solenoid Valve 2/2 NC 65l/min 350 Bar Manual override

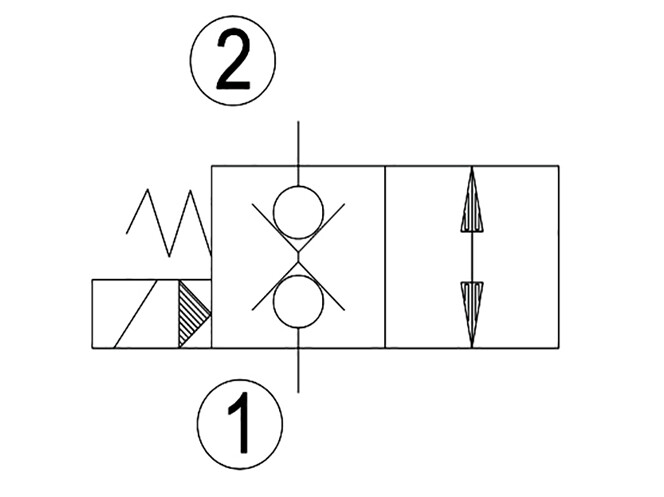

This is normally closed, poppet-style 10-size solenoid valve. When de-energized, the valve block in both directions. When energized, the valve’s poppet is opens on its seat, allowing flow from 2 to 1 or 1 to 2.
Applications:
The HSVP10-CDB is designed for high pressure, low leakage applications and can be used to control the advance and retract of single acting and double acting cylinders. The valve can also be used to lock pressure in a group of cylinders.
Partnumber:
11158117
Package size:
1 pcs
Min. order quantity is:
1 pcs
Activation
Solenoid
Brand Name
Danfoss
Cavity
SDC10-2
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
Yes
Flow rate nominal LMin
50 lpm
Manual operated
No
Model code
HSVP10-CDB-H00-00-XC-P-00
Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
350 bar
Sealing material
Polyurethane
Solenoidtype
H16
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
70 Nm
Valve type
NC - Normally closed
Package size
1 pcs
Barcode
5704334812333
Gross weight
Kg
Net weight
Kg
Country of origin
ita
Intrastat code
84812010
This is normally closed, poppet-style 10-size solenoid valve. When de-energized, the valve block in both directions. When energized, the valve’s poppet is opens on its seat, allowing flow from 2 to 1 or 1 to 2.
Applications:
The HSVP10-CDB is designed for high pressure, low leakage applications and can be used to control the advance and retract of single acting and double acting cylinders. The valve can also be used to lock pressure in a group of cylinders.
